Electric Bike Conversion Kit

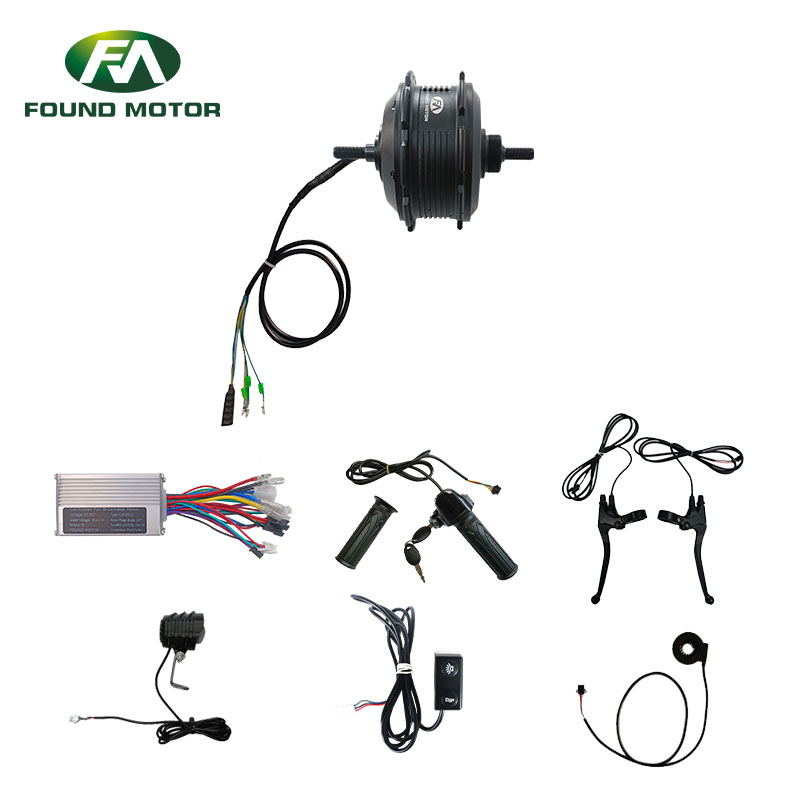

FOUNDMOTOR FMK-02-FM-01-01-N92ZT 26"36V 250W Ebike Conversion Kit

Product Description:

Product name	Product Code	Specifications

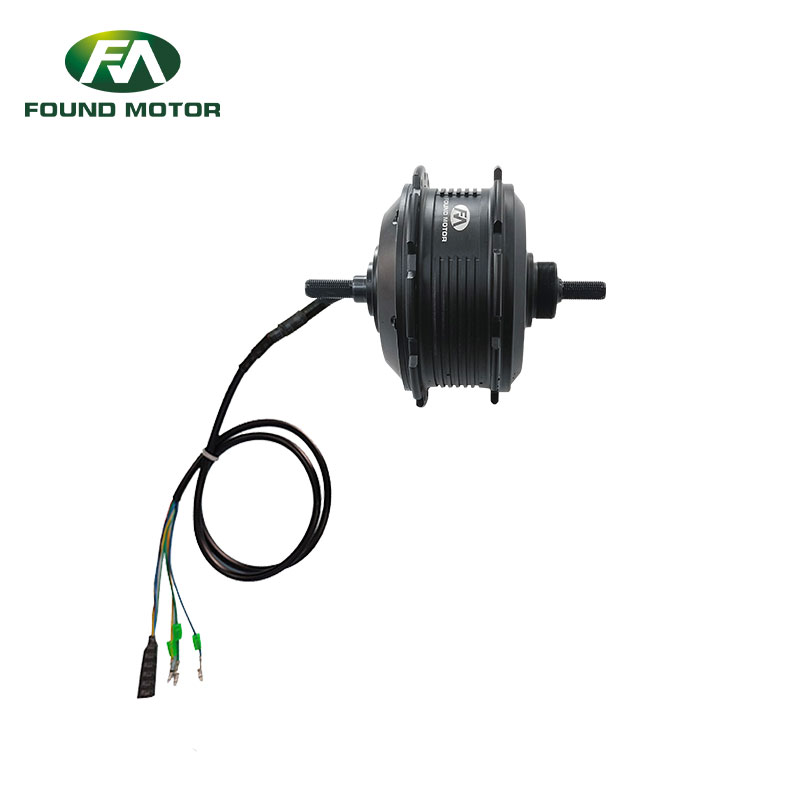

Motor	FM-01-01-N92ZT	1.26"36V 250W BLDC Geared rear drive spoke motor,rated speed 30KMH 2.Dropout - 125mm(open size) 3.Normal Cabel 800mm 4.Disk brake cover left,motor cable left 5.Color:black/silver 6.With Dacro screws, gaskets, black rubber sleeve 7.Customized LOGO available

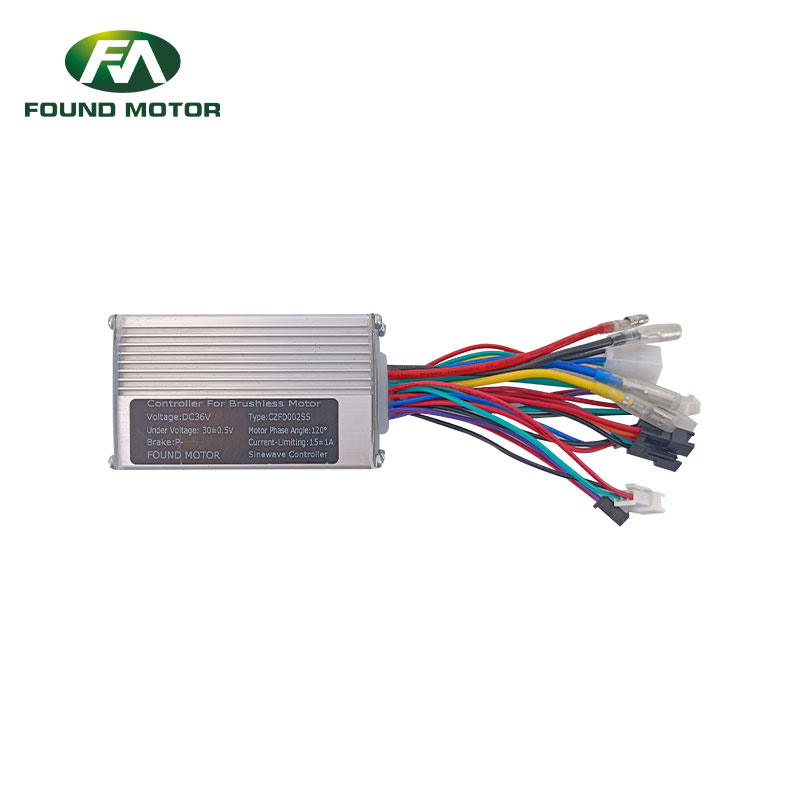

Controller	CZFD002SS	1.DC 36V, Sinewave controller. 2.Current-limiting 15±1A. 3.Normal connector:Motor cable,battery cable,throttle with battery indicate,speed,trip,voltage,brake lever,switch,front light,3 level PAS,8S auto cruise.

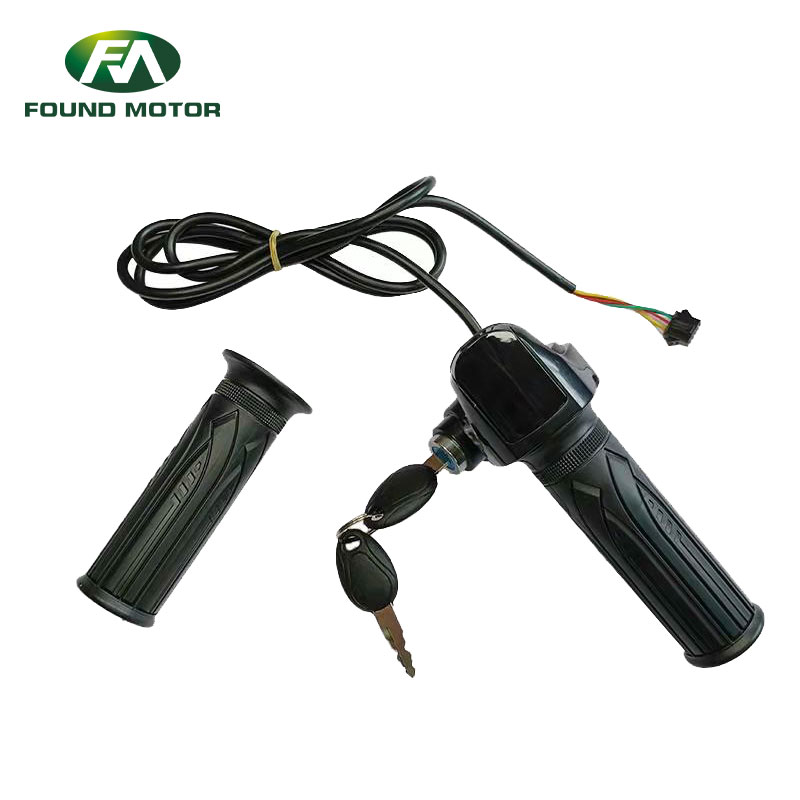

Throttle	TT87	1.Full twist throttle with battery indicate and lock,with speed,trip,voltage,normal connector 2.Cable length 1500mm 3.Full twist throttle,half twist throttle 4.Different kinds grips optional

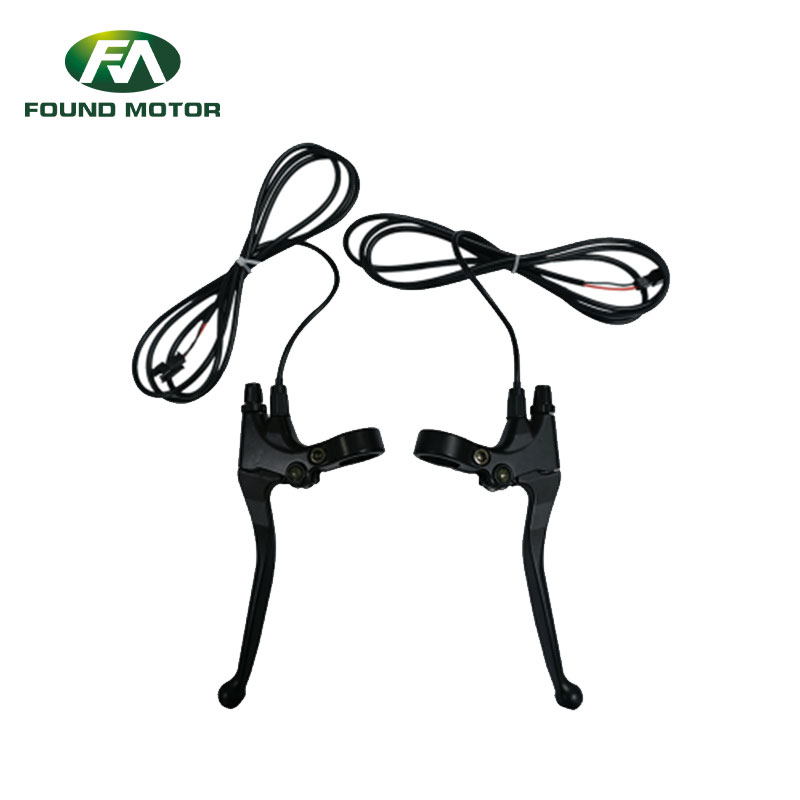

Brake lever	SY009	1.Brake lever with normal connector 2.Cable length 1500mm
Switch	DK21	1.Light/horn switch with normal connector 2.3 level PAS 3.Cable length 1500mm

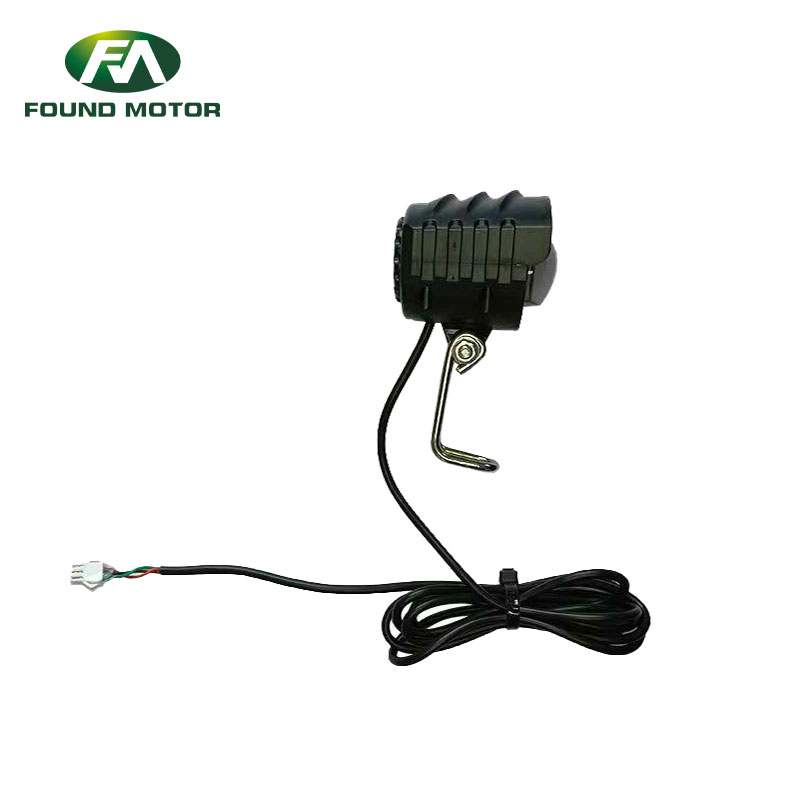

Front light	D-022	1.Front light and horn with normal connector 2.Cable length 1500mm

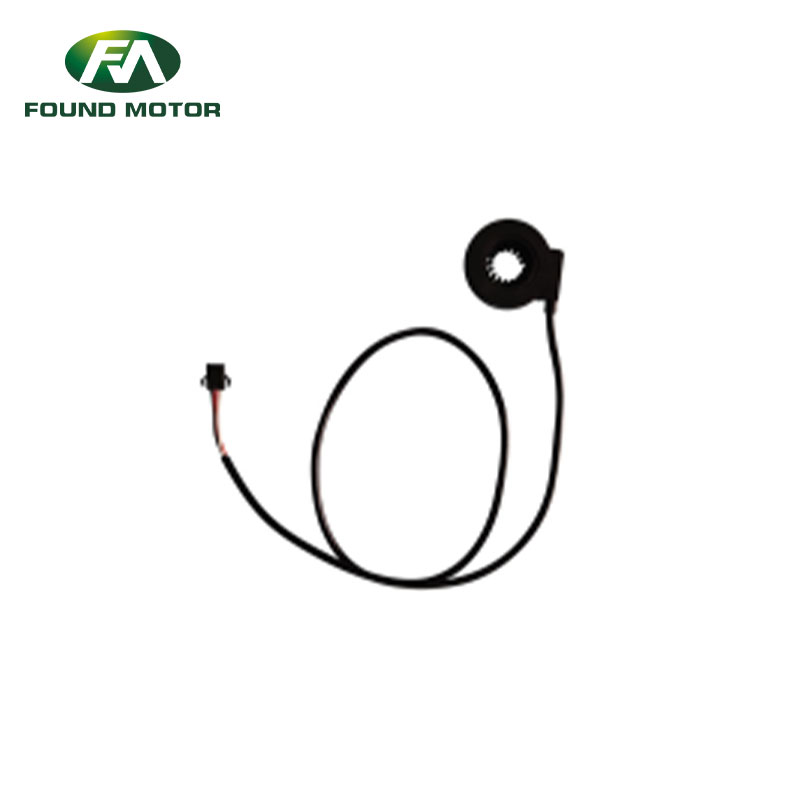

PAS	SW002	1.Single sensor, 6 magnets, Left side 2.Cable length 600mm, normal connector
