Electric Bike Conversion Kit

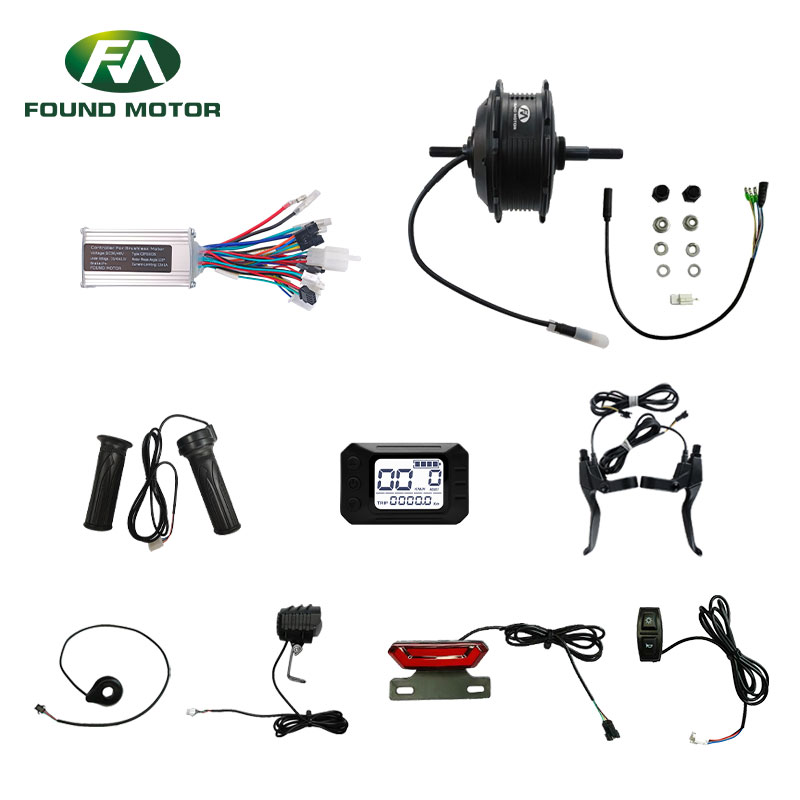

FOUNDMOTOR FMK-04-FM-01-01-N92Z/N92H-250W 26" 36V High Performance Electric Bicycle Conversion Kit

Product Description:

Product name	Product Code	Specifications

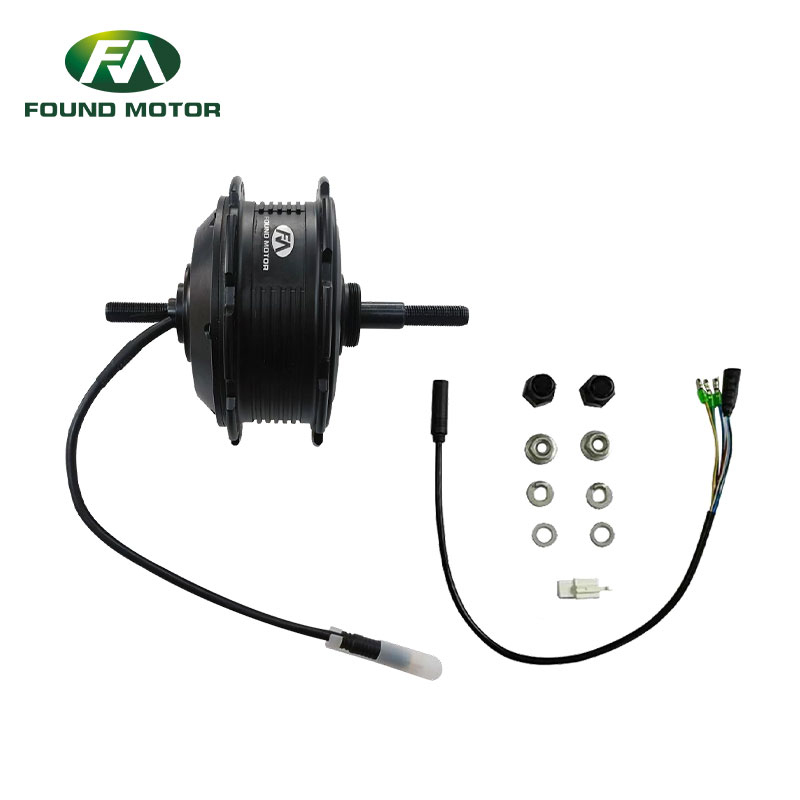

Motor	FM-01-01-N92Z	1.26"36V 250W BLDC Geared rear drive spoke motor,rated speed 30KMH 2.Dropout - 125mm(open size) 3.Waterproof cable with connector 260mm extension cable with normal connnector 500mm 4.Disk brake cover left,motor cable left 5.Color:black/silver 6.With Dacro screws, gaskets, black rubber sleeve 7.Customized LOGO available

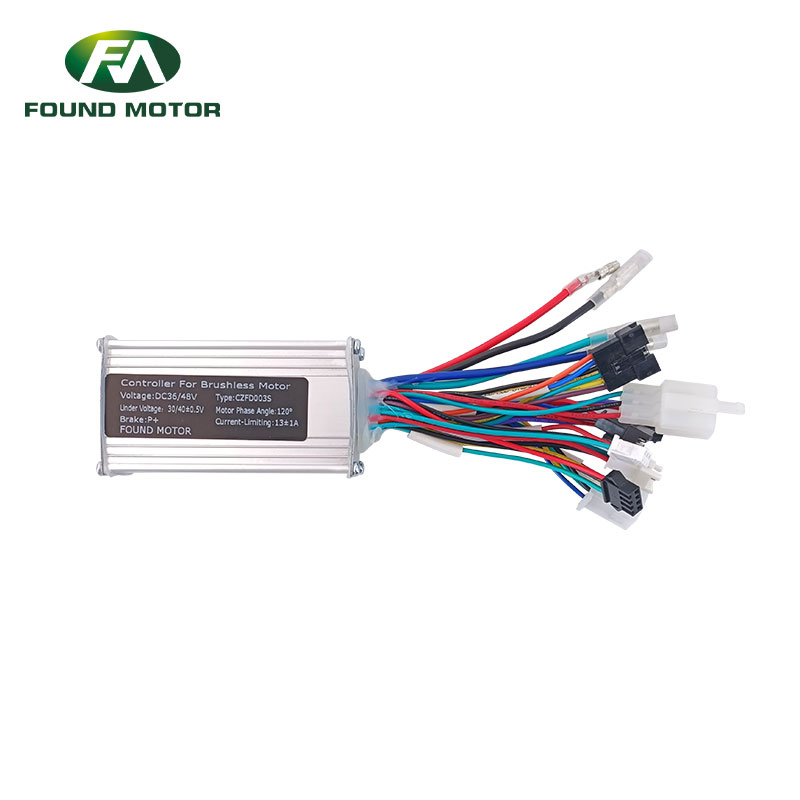

Controller	CZFD003S	1.DC 36V/48V, Sinewave controller. 2.Current-limiting 15±1A. 3.Normal connector:Motor cable,battery cable,throttle,brake lever, LED/LCD display,switch,front light,1-5 level PAS,8S auto cruise.

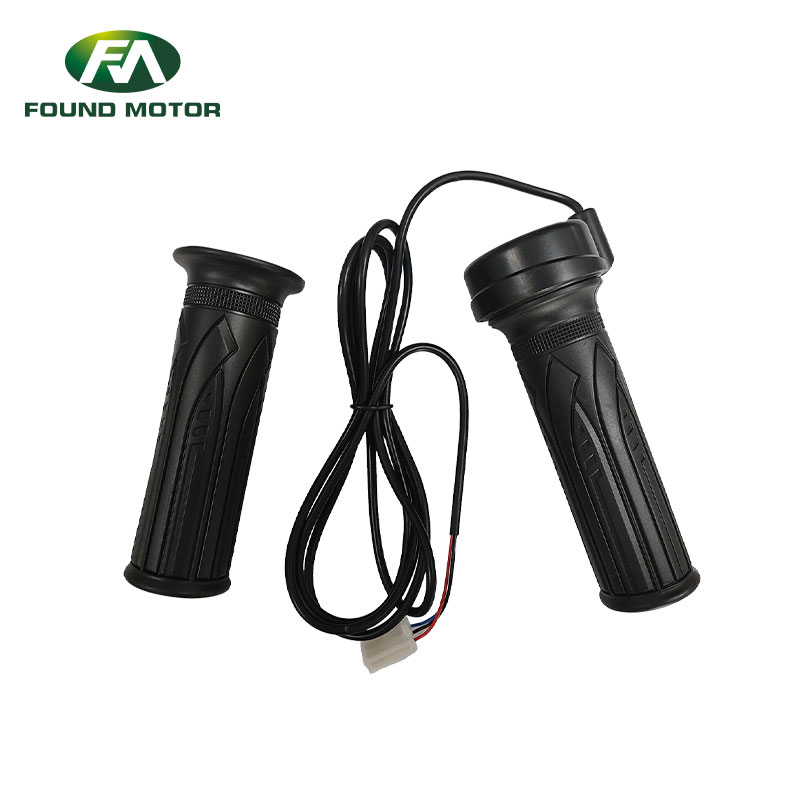

Throttle	TT70	1.Throttle with normal connector 2.Cable length 1500mm

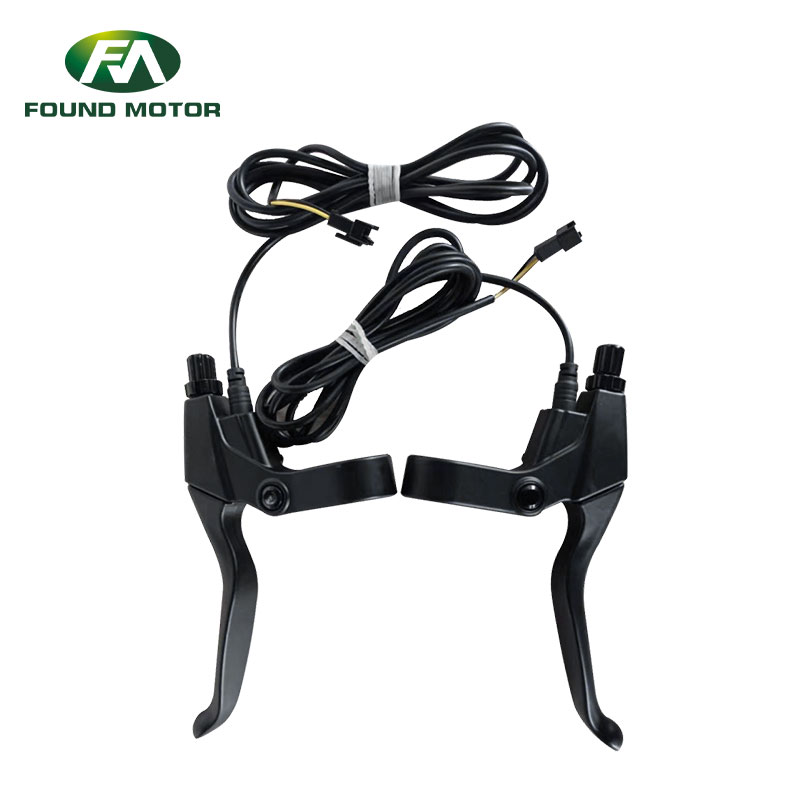

Brake lever	N133	1.Brake lever with normal connector 2.Cable length 1500mm

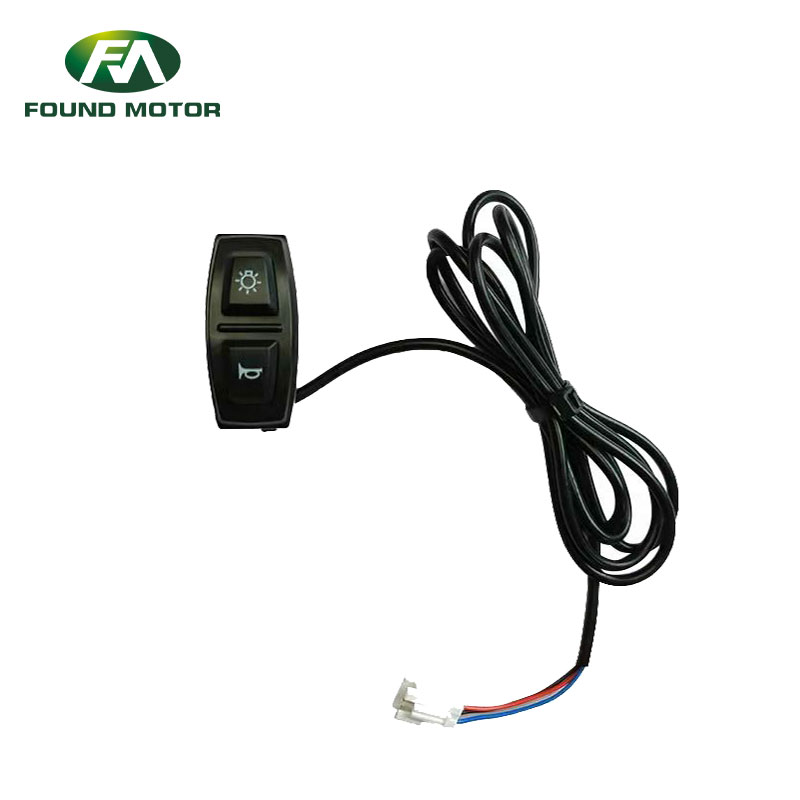

Switch	DK21-1S	1.Light/horn switch with normal connector 2.Cable length 1500mm

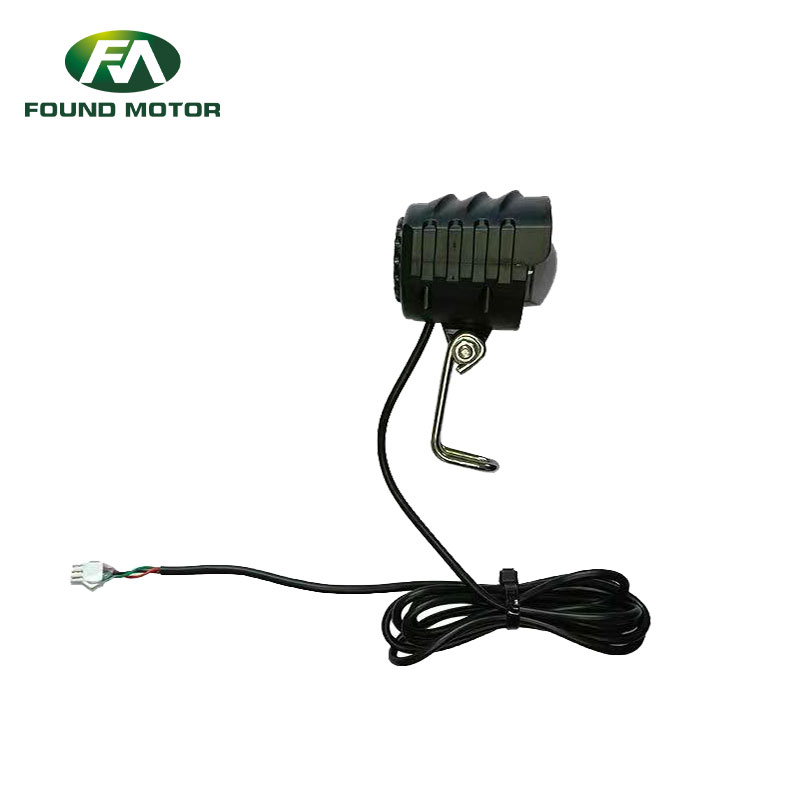

Front light	D-022	1.Front light and horn with normal connector 2.Cable length 1500mm

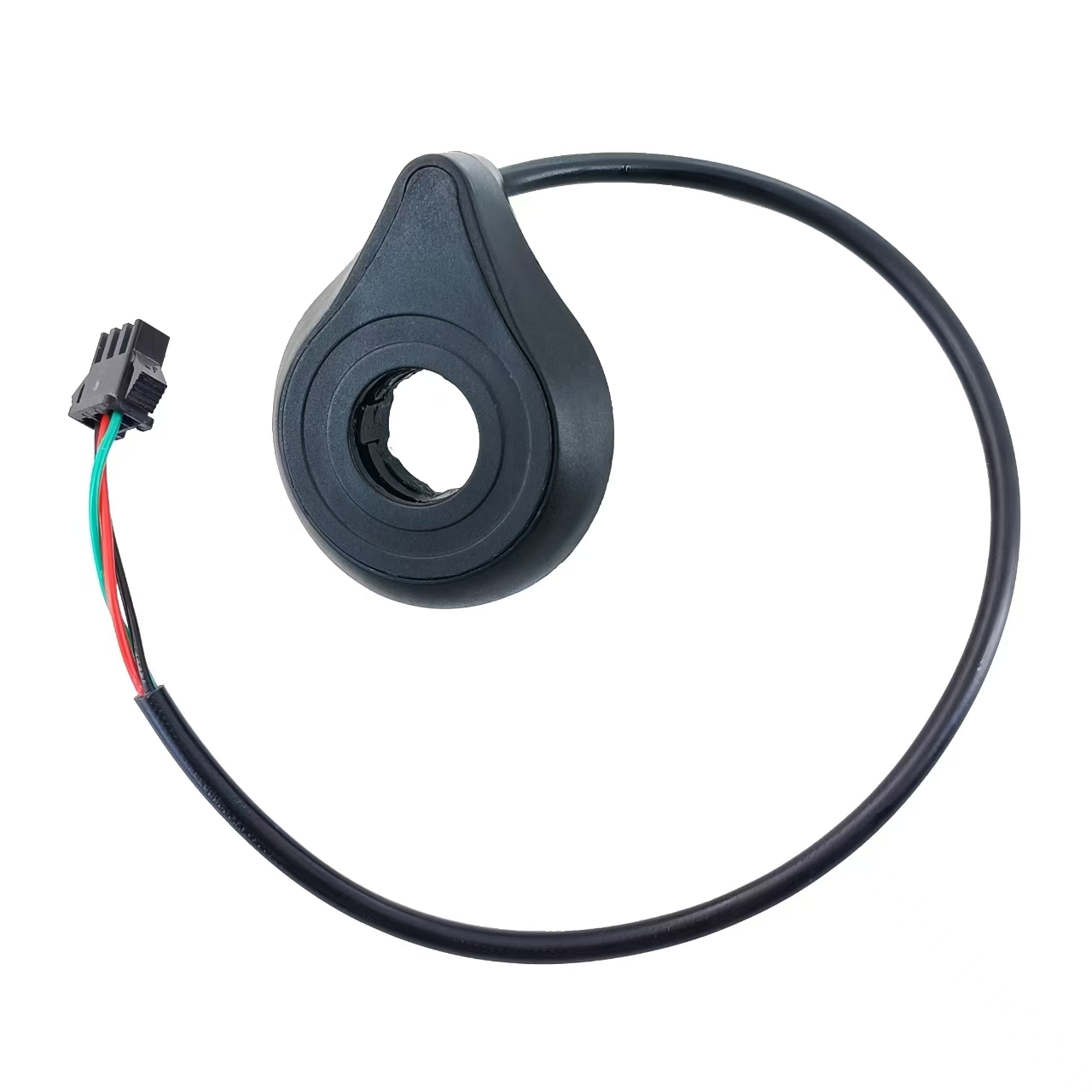

PAS	SW003	1.Double sensors,12 magnets, Left side 2.Cable length 600mm,normal connector

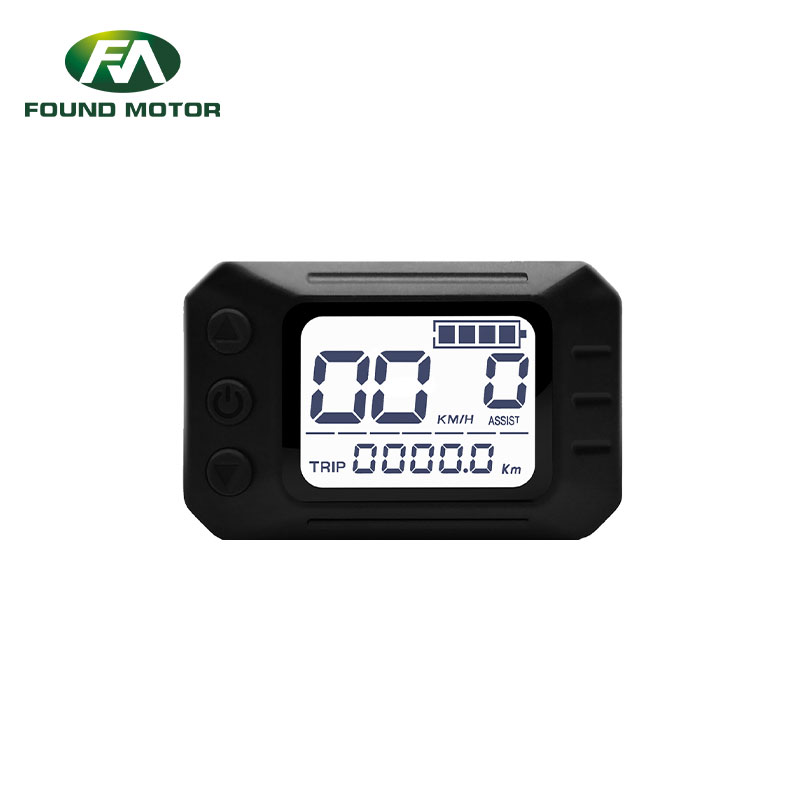

LCD display	FD001	1. LCD display with normal connector. 2.Cable length 1500mm 3.Battery indicate,speed,5 level PAS,walk speed 6kmh,ODO/TRIP,etc. 4.SW02 protocol. 5.LCD displays optional
